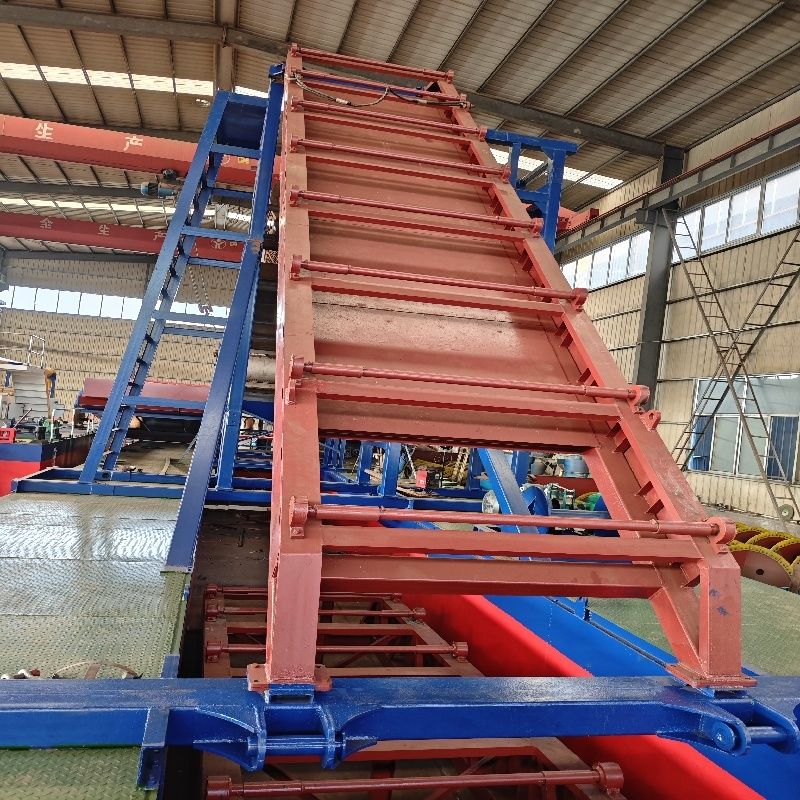

Chain Bucket Dredger Machine 120-150m³/h Capacity 15m Depth

Name: Chain Bucket Dredger Machine 120-150m³/h Capacity 15m Depth
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: YSBCD100
Price: 90000 USD
Availability: InStock

Rincian produk

Tempat asal: Shandong

Nama merek: yongsheng

Nomor model: YSBCD100

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1

Harga: 90000$

Kemasan rincian: Wadah

Waktu pengiriman: 40 hari

Syarat-syarat pembayaran: L/C, D/A, T/T, D/P, Western Union, Moneygram

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Rincian produk

Menyoroti:
                                                                                                                                                                                                                                                Chain bucket dredger machine 120-150m³/h, Gold dredging machine 15m depth, Bucket dredger machine with warranty


Kapasitas ((m3/jam):	120-150	Kedalaman pengerukan (m):	1-15
Daya Mesin Utama (KW):	75	Keranjang:	1000mm
Rantai:	6509025mm	Winch lengan besar:	22KW-6

Kapasitas ((m3/jam):	120-150
Kedalaman pengerukan (m):	1-15
Daya Mesin Utama (KW):	75
Keranjang:	1000mm
Rantai:	6509025mm
Winch lengan besar:	22KW-6

Deskripsi Produk

Automatic Chain Bucket Dredger Machine, 300m³/h Capacity for Sale

A chain bucket dredger is a continuous-duty dredger. Its core operating principle involves a series of buckets (excavators) evenly mounted on an endlessly rotating bucket bridge. Driven by upper guide wheels (drive wheels) and lower guide wheels, the buckets rotate continuously.

Operation Process

Excavation: The buckets penetrate the bottom mud layer at the lower guide wheel at the bow, scooping up the mud.
Lifting and transport: As the bucket bridge rotates, the buckets lift the mud from the bottom to the surface.
Unloading: When the buckets reach the top of the upper guide wheel, the bucket mouth points downward, and the mud pours by gravity onto the mud slide.

Technical Specifications

Model	YSBCD80	YSBCD100
Capacity(m³/h)	80-100	120-150
Dredging depth(m)	1-10	1-15
Main engine power(kw)	45	75
Main reducer	ZQ750	ZQ1250
Bucket	800mm	1000mm
Chain	6009022mm	6509025mm
Big Arm Winch	15kw-6	22kw-6

Working Principle

Excavation phase: The bucket moves down the bucket frame to the bottom of the water, the bucket cuts into the soil layer, and rises with the chain after being filled with mud and sand.
Lifting and transportation: The bucket brings the material above the water surface and turns over at the top to unload.
Material handling: The unloaded material is transferred to the shore or barge by a belt conveyor, or directly dumped into a designated area.

Applications

Port and waterway dredging: maintaining and widening waterways, and cleaning harbor basins
Land reclamation: providing fill material for land reclamation
Underwater excavation: excavating dock foundation trenches, canals, pipeline trenches
Mining: underwater mining of mineral resources such as placer ore, tin ore, and diamonds
Environmental desilting: precisely removing contaminated sediment

Why Choose a Chain Bucket Dredger?

Chain bucket dredgers are the preferred choice for projects requiring reliability, durability, and efficiency. Whether you're mining valuable resources, maintaining waterways, or restoring ecosystems, these dredgers deliver consistent performance in even the most challenging conditions.
