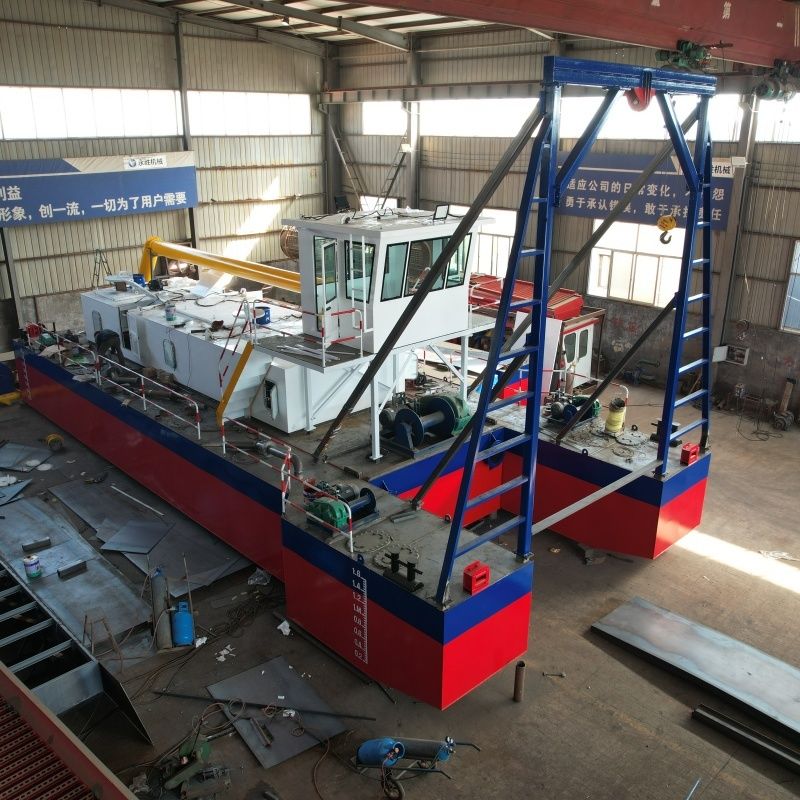

New 12inch Sand Dredger Machine 200-250 Cbm/H Capacity 456kw Engine

Name: New 12inch Sand Dredger Machine 200-250 Cbm/H Capacity 456kw Engine
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: YS-12INCH
Price: 75000 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: yongsheng

Nomor model: YS-12INCH

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1

Harga: 75000usd/piece

Kemasan rincian: Wadah

Waktu pengiriman: 30 hari kerja

Syarat-syarat pembayaran: T/t, l/c

Menyediakan kemampuan: 100piece/tahun

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Rincian produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                12inch sand dredger machine, sand dredger 200-250 Cbm/H capacity, sand dredger with 456kw engine


Disesuaikan:	Disesuaikan	kondisi:	Baru
Jaminan:	1 tahun	Aliran air:	1400m3/jam
Kapasitas padat:	200-250 CBM/H.	Max.Dredging kedalaman 45 °:	10m
Jarak debit:	1000m	Ukuran:	20m6.0m1.5m
Mesin utama:	456 kW	Konsumsi:	80L/jam
Aplikasi:	Pengisapan pasir	Situs kerja:	Kanal Laut Danau Sungai
Tenaga mesin tambahan:	110kw	Komponen inti:	Mesin, Pompa

Disesuaikan:	Disesuaikan
kondisi:	Baru
Jaminan:	1 tahun
Aliran air:	1400m3/jam
Kapasitas padat:	200-250 CBM/H.
Max.Dredging kedalaman 45 °:	10m
Jarak debit:	1000m
Ukuran:	20m6.0m1.5m
Mesin utama:	456 kW
Konsumsi:	80L/jam
Aplikasi:	Pengisapan pasir
Situs kerja:	Kanal Laut Danau Sungai
Tenaga mesin tambahan:	110kw
Komponen inti:	Mesin, Pompa

Deskripsi Produk

Used Sand Dredger Machine Jet Sand Mining Dredging Machine For Sale

Product Specifications

Attribute	Value
Customized	customized
Condition	new
Warranty	1 year
Water Flow	1400m³/h
Solid Capacity	200-250 Cbm/H
Max.Dredging Depth 45°	10m
Discharge Distance	1000m
Size	20M6.0M1.5M
Main Engine	456kw
Consumption	80L/H
Application	sand suction
Work site	river lake sea canal
Auxiliary engine power	110kw
Core Components	Engine, Pump

Product Description

The jet suction dredger is designed for efficient operation in rivers, channels, lakes, and other water bodies. We offer customized solutions tailored to customer requirements, including on-site engineering support for installation, trial operation, and operator training.

Technical Parameters

Our jet suction dredger features a high-pressure water pump and powerful sand suction pump working in tandem. The water pump creates high-pressure jets to agitate sand layers, while the suction pump transports material through discharge pipes.

Model	Solid Capacity	Water Flow	Dredging Depth	Discharge Distance	Main Engine	Auxiliary Engine	Total Consumption	Size (m)
6inch	40-50 m³/h	250 m³/h	6M	500M	120 KW		18L/H	103.81.6
8inch	80-100 m³/h	500 m³/h	8M	500M	176 KW	60KW	40L/H	144.51.2
10inch	150-180 m³/h	900 m³/h	10M	800M	294 KW	88KW	60L/H	1751.2
12inch	200-250 m³/h	1400 m³/h	10M	1000M	456 KW	110KW	80L/H	2061.5
14inch	300-400 m³/h	2000 m³/h	12M	1500M	735 KW	120KW	120L/H	246.61.6
16inch	400-500 m³/h	2600 m³/h	14M	1500M	882 KW	258KW	150L/H	247.21.8
18inch	500-600 m³/h	3000 m³/h	14M	1500M	1103 KW	456KW	220L/H	247.62.0
20inch	600-700 m³/h	3800 m³/h	14M	1500M	1250 KW	456KW	240L/H	267.62.0

Note: This equipment is customizable with a maximum conveying distance of 1000-2000m per pump. For longer distances, a separate relay pump group can be added. Output calculations are based on 15-20% concentration flow rate.

Key Features

Low maintenance with efficient power distribution
Safe and robust pump drive system
Durable marine-grade engine
Easy transportation and operation
Advanced Siemens PLC control system
Fully assembled and tested before delivery
Quick assembly with experienced engineers
Short delivery times
Standard spare parts available from stock
Optional equipment available
