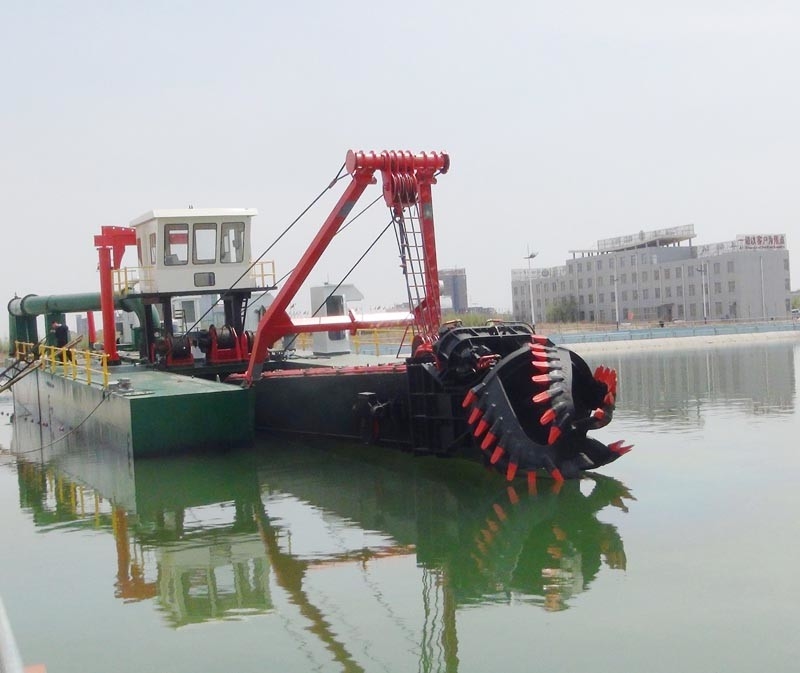

1193 kW 20 Inch Cutter Suction Dredger for Port Dredging

Name: 1193 kW 20 Inch Cutter Suction Dredger for Port Dredging
Brand: Shandong Yongsheng Dredging Machinery Co., Ltd.
SKU: YSCSD500
Price: 1200000.00 USD
Availability: InStock

Rincian produk

Tempat asal: Shandong

Nama merek: yongsheng

Nomor model: YSCSD500

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1

Kemasan rincian: Kontainer

Waktu pengiriman: 50 hari

Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Rincian produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                20 inch cutter suction dredger, port dredging cutter suction dredger, 1193 kW cutter suction dredger


Pipa diameter:	500mm	Aliran air:	900 m3/jam
Kapasitas padat:	900 CBM/H.	Mesin utama:	1,193 kw Cummins mesin
Max. Kedalaman pengerukan 45 °:	15 m	Jarak debit:	1.600 m
generator:	30kw	Kekuatan pemotong hidrolik:	220KW

Pipa diameter:	500mm
Aliran air:	900 m3/jam
Kapasitas padat:	900 CBM/H.
Mesin utama:	1,193 kw Cummins mesin
Max. Kedalaman pengerukan 45 °:	15 m
Jarak debit:	1.600 m
generator:	30kw
Kekuatan pemotong hidrolik:	220KW

Deskripsi Produk

Main Engine Power 1,193 kW 20 Inch Cutter Suction Dredger for Port Dredging

Key Specifications

Attribute	Value
Diameter pipe	500mm
Water flow	900 m³/h
Solid capacity	900 cbm/h
Main Engine	1,193 kW Cummins engine
Max. dredging depth 45°	15 m
Discharge distance	1,600 m
Generator	30 kW
Hydraulic cutter power	220 kW

Product Overview

The cutter suction dredger is a highly efficient continuous underwater excavation system, widely used in channel dredging, port construction, land reclamation, water conservancy projects, and environmental dredging. This integrated system combines excavation, transportation, and discharge functions, making it essential for modern dredging operations.

Technical Specifications

Water flow	4,800 m³/h
Solid capacity	900 cbm/h
Max. dredging depth 45°	15 m
Discharge distance	1,600 m
LOA	47 m
Dimensions (L×W×D)	47×8.8×2.5 m
Structure	Dismantle type for on-site assembly
Average draught	1.6 m
Diameter discharge pipe	500mm/20 inch
Main Engine	1,193 kW Cummins engine
Rotate speed	1,800 r/min
Auxiliary engine power	425 kW Cummins engine
Total power	1,648 kW

Operational Workflow

Excavation: Powerful rotating cutter head with cutting teeth loosens bottom materials including mud, clay, and soft rock.
Suction: Mud pump creates vacuum to draw loosened material through suction pipe.
Transport: Pressurized mud moves through internal piping system.
Discharge: Material delivered via pipeline to shore or barges for final placement.

Key Features

Continuous high-efficiency operation
Versatile material handling from silt to medium-hard rock
Long-distance material transport capability
Precise depth and grade control
Reduced environmental impact through controlled placement

Applications

Port and waterway construction
Land reclamation and island building
Environmental remediation projects
Subsea mineral extraction

Company Profile

Shandong Yongsheng Dredging Machinery Co., Ltd. operates from Qingzhou City, Shandong Province, with two production bases covering 2,000 m². With over 20 years of experience in water environmental protection equipment, we specialize in R&D, manufacturing, and comprehensive after-sales service. ISO9001 certified.
